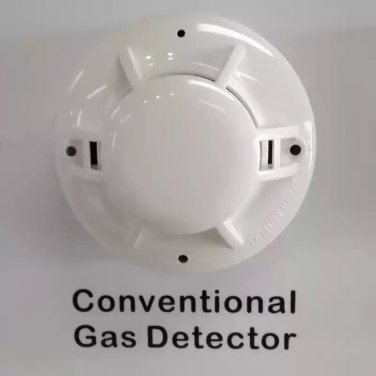

Combustible Gas Detector LNG LPG gas Leak Detector DC12-24V connection with home security systems. Loud 85dB alarm and LED warning light. Self diagnostic function by MCU intelligent software.
FEATURES:
1. Detect all sorts of combustible gases, natural gas (methane), bottled gas (propane), LPG (Liquefied petroleum Gas), LNG (Liquefied natural gas), coal gas, including town gas.
2. High quality durable catalytic
combustion method gas sensor.
3. Easy to install.
4. Loud 85dB alarm and LED warning light.
5. Self diagnostic function by MCU intelligent software.
6. Excellent reliability & High stability.
7. Ideal for all house and kitchens.
TECHNICAL SPECIFICATIONS
Color: Ceiling White
Operating Temperature: -10°C to +50°C
Ambient Humidity: ≤95% RH
Alarm Horn: 80dB
Operating Voltage: DC12-24V
Power Consumption: 3 years
Alarm: Red LED with 80dB alarm
Warm Up Time: approximately 60 Seconds
Alarm Output: Relay Output (1A@DC24V)
DC powered Gas detector Terminals Wires
Description (DC Power Relay Output
Module)
T1. Red Color: DC+, DC power Positive Input
T2: Black Color: DC- , DC power Negative Input
T3: Yellow Color: NO, Relay Normal Open Contact
T4: Green Color: NC, Relay Normal Close Contact
T5: White Color: COM, Relay Common Contact
